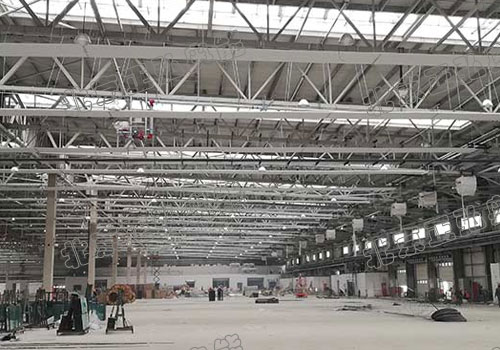

Whether workers working in industrial plants feel comfortable depends on the heat transfer mode of the surrounding environment.The heat radiation mode of the hot water radiation panel is comfortable and uniform, no fan, no convection, no dust, and it is a very comfortable heat transfer mode for the human body.Therefore, the hot water radiation panel is suitable for factories, warehouses, production workshops, gymnasiums, garages, shops, hangars, maintenance workshops and other tall space places of 4-30 meters.

Hot water radiant panel heating is based on hot water, high temperature steam, hot oil and other heat sources, through the way of heat radiation heating, compared with traditional convection heating methods, such as heaters, radiators and other hot water end products, to meet the same heating effect of the case, hot water radiant panel energy saving up to 30-50%.

Hot water radiant panel heating is similar to the sun, sunlight shines on the Earth's surface, the surface temperature increases, and then indirectly heats the air layer.80% of the heating capacity of the hot water radiant panel comes from this thermal radiation.Since the air absorbs almost no radiant heat, the radiant heat will directly heat the surface that is illuminated, such as the ground, objects, and people below it, and then release heat to the surrounding air.The temperature of the irradiated surface can be as much as 3 ° C above the ambient air temperature.The hot water radiant panel itself also heats the surrounding air by convection, which accounts for 20% of the heat.

Hot water radiation panel features:

Low operating cost

The radiant panel has no moving parts and is almost maintenance free.

Short payback period

Radiant panel heating system is mainly manifested in the initial investment can be saved through energy savings in a few years.

Uniform temperature distribution

No temperature spikes are felt below the radiant panel.The temperature is 2-3k lower than the traditional heating system is also comfortable.After the walls and floors are heated, they can be used for secondary heat dissipation into the room.

Spatial gain

The radiant panel heating system is installed on the roof, does not occupy the ground and walls, etc., can make full use of the ground and walls.

Comfortable and healthy

Radiant panel heating without blowing, will not cause dust flying.The temperature is 2-3k lower than the traditional heating system is also comfortable.After the walls and floors are heated, they can be used for secondary heat dissipation into the room.

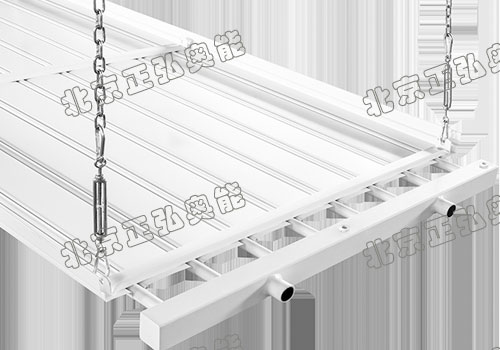

The ECOPAN hot water radiation panel promoted and sold by Beijing Leadway Power Co., Ltd. adopts an innovative design concept. The pipe is the warmest part of the panel, completely down, and 70% of the surface is wrapped by the metal plate (the wrapping Angle is more than 280°), which increases the heat transfer area and perfectly ensures the transfer of heat from the tube to the plate.

As a terminal heat dissipation device, the hot water radiation panel does not require electro-mechanical components, consumes no electrical energy, and runs almost maintenance-free, saving operating costs.Compared with traditional convection heating equipment, the initial investment of hot water radiant panel heating system is relatively high, but its energy saving is obvious after operation, and the higher investment part can be compensated by energy saving in a few years.

Hot water radiant panel heating system for the water system heating, low temperature and pressure, does not increase the fire rating of the building, can be used in volatile and flammable building environment, will not cause the risk of fire and explosion.The ECOPAN hot water radiation panel promoted and sold by Beijing Leadway Power Co., Ltd. uses carbon steel radiation panel;The pipeline uses copper pipe;The design service life is generally 30 years.
