ECOPAN hot water Radiant Panel - An excellent choice for heating in large Spaces

time：2025-05-07
hits：168次
source：正弘奥能

In high-rise buildings, the choice of winter heating methods is of vital importance, mainly considering factors such as human comfort and energy conservation. Traditional heating methods, such as radiators, consume a large amount of heat in the upper part of tall buildings, making it difficult for the lower working area to obtain sufficient heat, and the temperature distribution is uneven. This not only leads to more energy consumption and poor comfort, but has also been proven to be unsuitable for the Spaces of tall buildings. In contrast, radiant heating is more suitable for heating large Spaces. As there is no convective gas produced, it does not cause the phenomenon of being hot at the top and cold at the bottom, resulting in less dust flying and better hygiene conditions, providing a comfortable working environment for employees. Radiant heating is designed to be 2-3℃ lower than traditional heating systems, yet it still feels very comfortable. The entire workshop is heated evenly, providing a reliable working environment for enterprise production.





	<img src="/Uploads/image/20250507/20250507095025_43896.jpg" alt="" />

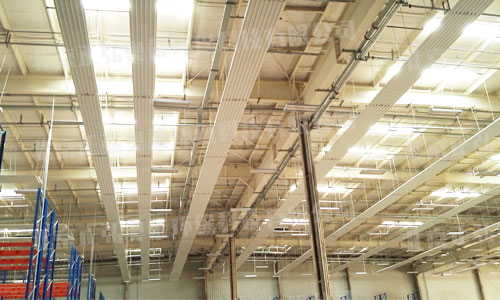

Among radiant heating products, hot water radiant panels use metal radiant panels combined with tubes and sheets as the radiation source, ordinary hot water and high-temperature hot water as the medium, and the radiant panels are arranged in series in a strip pattern and installed in a suspended ceiling form. This heating system is energy-saving and highly efficient, free of power noise, air convection, wind and dust. It is an excellent choice for heating in large Spaces. It can be applied to various occasions such as industrial workshops, warehouses, gymnasiums, garages, stores, aircraft hangars, aircraft maintenance hangars, car showrooms, shipyards, offices, etc.


	ECOPAN hot water radiant panel promoted and sold by Beijing Leadway Power Co., Ltd. can provide the best heating solution. To reduce this thermal shock, ECOPAN hot water radiant panel has achieved a 2-meter-long metal plate module, making the 4-meter-long module composed of 2 plates and the 6-meter-long module composed of 3 plates. When 2-meter plates are placed side by side, an expansion joint is formed. The welding points are located in the middle of every 2 meters of the sheet, so the expansion on both sides is less than 1mm. This ensures that the radiation panel will not deform during this period. Under the same size characteristics (pipe diameter, quantity and spacing, panel width), Ecopan panels have higher thermal energy efficiency than other products on the market. This way, fewer radiant panels can be used to meet the same thermal energy efficiency requirements, thereby saving the initial cost.





	<img src="https://www.leadwaypower.com/Uploads/image/20250507/20250507095007_64698.jpg" alt="" />





	Energy-efficient
The system operates directionally in the heated zones where people are.The panels are so realized that the pipe,being the warmest part of the panel,is completely turned downwards and is wrapped by 70%of its surface by metal plate.Pipes,completely prominent under plates that reduce convective flows and increase radiance.This allows to obtain rapidly the required temperature,without long pre-heating times and consequent energy saving.

Easy installation
The installation is particularly easy,quick and safe.The pipes of each modular element are connected by means of welding or pressfitting,which greatly guarantees the flexibility of installation.When pipe coupling is complete,a joint covering is inserted between the plates,which are easily inserted from below between the plates,so that installation times are reduced to the minimum level.Joint coverings have the same profile as main plates and laboratory tests confirm that the thermal output is exactly the same as the active plate of the panel where they are positioned.

Immediate comfort
Comfort levels significantly improve with radiant heat panels.They distribute heat evenly across a room,eliminating cold spots and creating a cozy atmosphere.This method of warmth can feel more natural and pleasant than forced-air systems.Indoor air quality also benefits,as radiant heating doesn’t circulate dust.Workers can enjoy a warm environment without the uncomfortable dry air often associated with traditional heating methods.

Cost saving
Radiant panel systems provide significant savings in construction costs due to their efficient use of space. There is very little involved with the maintenance of a ceiling.Once correctly installed,the radiant panels require little or no further maintenance as they have no moving parts,and are kept up and out of the way, so that the maintenance costs will be greatly reduced..This makes radiant panels particularly useful in high traffic areas such as busy airport walkways or school gymnasiums.
