What equipment is good for heating of large-space industrial plant?

time：2024-05-29
hits：473次
source：正弘奥能

Large space industrial plant drop, more open, insulation effect is poor, the use of traditional flow heating will cause energy waste, heat rise most concentrated to the upper space of the plant, hot under the cold, the following working people or machines simply can not feel the heat. In fact, high-space industrial plants have many areas that do not need heating, such as corridors, or product semi-finished products and packaging materials stacking areas, which do not need heating at all. We only need to heat the local heating around the equipment area or the working area of the workers on the station, and infrared radiation heating is to fully meet the needs of the heating of tall space industrial plants.


	Infrared radiation heating is to cause enough radiation intensity in a certain space to maintain the heating effect, and the indoor temperature gradient is smaller than that of convective heating, which can greatly reduce the heat loss in the upper part of the house. At the same time, due to the decrease of hot pressure, the corresponding cold air permeability also decreases. Infrared radiation directly acts on the equipment or the human body, does not need to heat the air first, can be directed heating or local heating. At the same time, infrared radiation heating in some special occasions (such as local factory heating), can also achieve the heating effect that convective heating is difficult to achieve.





	<img src="http://www.leadwaypower.com/Uploads/image/20240529/20240529132237_97476.png" alt="" />

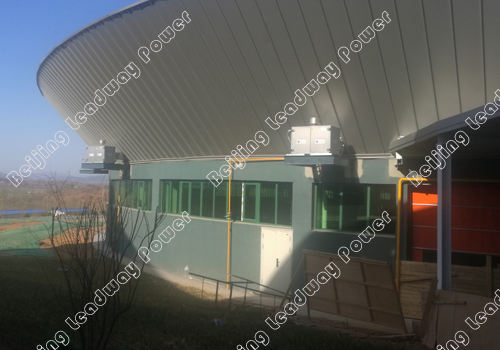

IMPRESIND gas radiation heating system, promoted and sold by Beijing Leadway Power Co., LTD., is an independent heating system, which can be installed on the roof or on the wall. The generator power of radiant heating is between 180 and 270KW.

The radiation tube is made of double-sided aluminized black gray alloy steel. Heat treatment at high temperature under strict control of temperature and humidity (black and gray surface is not coated or painted). No paint discoloration, no distortion, higher thermal radiation efficiency; Corrosion resistance, oxidation resistance, ensure service life.


	A special double graphite sealing ring gasket joint device can realize perfect connection between radiation tubes. No need to use organic sealant sealing, safe and convenient, can withstand 1500℃ high temperature, avoid joint fracture due to excessive expansion, to the greatest extent to ensure the safety of the workplace and the reliability of high space heating system.





	<img src="http://www.leadwaypower.com/Uploads/image/20240529/20240529132305_67873.png" alt="" />

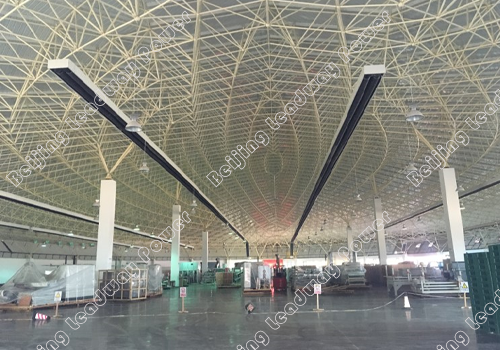

After the heat exchange of the hot fluid inside the radiation tube is finished, part of the product will be used for flue gas recirculation through the premix chamber, greatly improving the heating efficiency and making full use of energy. And the other part is directly discharged to the outside. Twice heating to achieve energy saving, environmental protection, reduce the purpose of operating costs.

IMPRESIND gas radiant heating system has good adaptability, can meet the heating needs of industrial workshops, hangars, warehouses and other tall Spaces, to achieve on-demand heating, reduce energy and operating costs.
