The advantages of Ipside gas radiant heating system in large space heating application

time：2024-04-29
hits：403次
source：正弘奥能

With the development of economy, progress of science and technology, heating technology has also taken a very big change, in the process of building construction, heating construction has always been a very important part, the way of gas radiation heating in China's heating project has been widely used, at the same time in the practical application also shows a very significant advantage.





	<img src="http://www.leadwaypower.com/Uploads/image/20240429/20240429174558_77257.jpg" alt="" />


IMPRESIND gas radiant heating system is an independent gas radiant heating equipment, used in industrial plants, aircraft maintenance depots, warehouses, logistics centers and other tall space environment. The heat source is natural gas or liquefied petroleum gas, which is composed of a heating distribution system composed of a generator and a special radiation pipe section.

The generator housing consists mainly of steel and stainless steel side panels that house the combustion assembly, ventilation assembly, distribution control and safety mechanism. Stainless steel suspension brackets for complete internal or external installation. The radiation section is composed of a series of modules (ranging from 2 to 4 meters), which are connected together by corresponding brackets inserted into the module.


	Each module is made of special aluminized steel pipe, and the side panels are specially made aluminum insulation panels with high reflective power. The main structure is a coated composite steel plate that supports and accommodates all components of the radiation tube section. Steel pipes are connected with special joints. It has special high temperature resistance and elasticity, and is connected to the radiation tube section by a ring hook to keep the position fixed. The solution, which does not use sealing compounds or putty, compensates for the expansion caused by the heating of the modules, so that they do not cause dangerous expansion and stretching, providing a guarantee of long-term sustainable use.





	<img src="http://www.leadwaypower.com/Uploads/image/20240429/20240429174608_48349.jpg" alt="" />

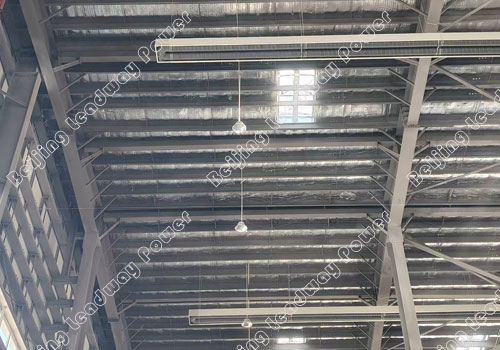

The IMPRESIND gas radiant heating system uses the transmission principle of electromagnetic waves to heat in the infrared field during operation. Heat directly heats the human body, the floor and the building, through the air convection heat back, to ensure a comfortable environment, very easy to reach the human body more suitable temperature, so it can reflect a very obvious advantage in energy saving and environmental protection.

1, save investment, save energy:
There is no need to install external combustion equipment, independent heaters are generally installed outside the building, and the radiation tube is installed above the building space, and does not occupy the building space. Radiant heat directly radiates downward, the ground can also store part of the heat, indoor air temperature gradient is small, small heat loss, reduce heat consumption under the premise of ensuring comfort, to achieve the purpose of energy saving.

2, clean energy, harmless combustion:
The use of natural gas, liquefied petroleum gas and other clean energy as heat. At present, the technology of gas radiation heating equipment is very mature, and it is completely feasible for the gas to be discharged directly to the outside after combustion, which meets the requirements of environmental protection.

3, static heating, uniform temperature rise:
The operation is quiet, no convective air is generated, the ash phenomenon in the industrial plant is avoided, and the health conditions of the heating space can be improved. The indoor heating speed is fast, the heat distribution is uniform, and the body feeling is comfortable and soft. In addition, considering the poor sealing of many factory Windows, the indoor air temperature of gas radiation heating is 2 ~ 3℃ lower than that of convective heating, and the heat consumption is small, and the temperature difference between indoor and outdoor is small, so the cold air permeability is also small.

4, intelligent temperature control, easy management:
Independent control or centralized remote control can be achieved, economic mode, night antifreeze mode and holiday mode can be set respectively according to the time, local intermittent heating can also be set, and the temperature can be operated by itself, to achieve unattended within a week, low operation and maintenance costs.
