Is the investment and operation cost of gas radiant heating system large?

time：2024-03-06
hits：634次
source：正弘奥能

In the heating of tall space industrial plants, choose gas radiation heating equipment, only need to take over the gas pipe network, and install pressure regulation equipment at the entrance of the system, do not install heating boilers and other ancillary equipment, there is no heating water circulation system, and the investment is greatly reduced. At the same time, due to the high temperature of the radiation tube, the natural gas consumption is low, and the energy investment can be greatly saved.





	<img src="http://www.leadwaypower.com/Uploads/image/20240306/20240306092654_96074.png" alt="" />


The selection of gas radiation heating equipment saves the huge and complex boiler and boiler room equipment, the system structure is simple, the installation cycle is short, and the use area of the building is not occupied. The radiation pipeline is generally installed in the upper part of the heating space of the building, so it rarely occupies or does not account for the use area of the building, saving valuable building land. Heat propagation is highly directional. Radiant heat directly radiates downward, the ground can also store part of the heat, indoor air temperature gradient is small, small heat loss, reduce heat consumption under the premise of ensuring comfort, to achieve the purpose of energy saving. It can be flexibly arranged according to different needs, can carry out comprehensive heating, can also be heated in a large space, in the local area, according to the need for heating, can greatly save energy consumption.

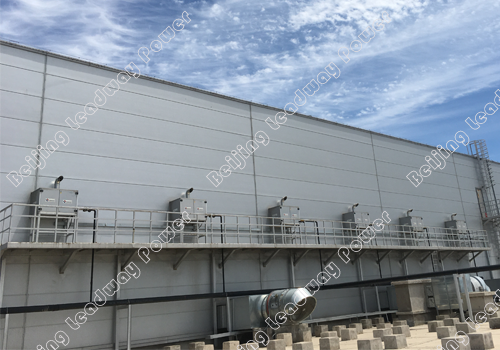

	In terms of fire safety, many customers and designers will think that the use of gas radiation heating equipment needs to introduce natural gas and liquefied petroleum gas pipelines into the workshop, which will inevitably increase the risk of the river, making the fire risk level of the building. In fact, the IMPRESIND gas radiation heating equipment imported from Italy by Beijing Leadway Power&nbsp;Co., LTD., the heating generator is installed outdoors to avoid risks such as fire protection, and the combustion inside the equipment can only be carried out when the radiation pipe is negative pressure, and the pipeline, valve and other strictly sealed. The gas generated after combustion is directly discharged to the outside, which meets the domestic environmental protection requirements.





	<img src="http://www.leadwaypower.com/Uploads/image/20240306/20240306092706_99326.png" alt="" />


The thermal energy generator burns natural gas, and the hot fluid generated flows in the radiation tube under the drive of the negative pressure centrifugal fan. The gray and black radiation tube made of aluminum alloy and steel is excited by the high temperature surface to produce far infrared radiation, which directly acts the radiant heat on the objects and human bodies in the heating area. After the heat exchange of the hot fluid inside the radiation tube is finished, part of the product will be used for flue gas recirculation through the premix chamber, greatly improving the heating efficiency and making full use of energy. And the other part is directly discharged to the outside. Two heating to achieve the purpose of energy saving, environmental protection, reduce operating costs, comprehensive energy saving up to 30%~50%.

At present, IMPRESIND gas radiation heating system has been successfully applied to Beijing Daxing International Airport China Southern Airlines A380 aircraft maintenance base heating project, Urumqi Diwopu International Airport cargo area heating renovation project, FAW-Volkswagen Tianjin factory heating project, Ordos comprehensive bonded zone logistics storage plant and so on.
