Connection structure and installation method of hot water infrared radiation panel in building with large space

time：2023-05-16
hits：653次
source：正弘奥能

With the continuous growth of our economy, the continuous improvement of industrial technology and people's living standard, the demand of heating, ventilation and air-conditioning in large space buildings shows a change from quantity to quality.





	Hot water infrared radiation plate is a kind of metal radiation plate, can be used for the height of 4m~30m building comprehensive heating and local area or local working place heating, its use range is very wide, including large shipyard, ship, aircraft and automobile maintenance hall, building materials market, shopping center, exhibition venue, multifunctional gymnasium and entertainment hall and many other occasions.





	The radiation plate can be normally hung on the roof, but when there is a ceiling in the room, there is a problem, that is, the position relationship and connection between the radiation plate and the ceiling, which not only involves the stability of the radiation plate and the ceiling and the radiation plate heat dissipation effect, but also affects the overall aesthetic effect.To solve these problems, ECOPAN Hot water infrared radiation panel provides the best production solution, making the operation of the construction site easier, optimize the time, and thus reduce the cost.





	The sides are formed in the board, easy to place insulation material, the head of the pipe lining is welded perfectly, the joint cover is easy to locate, so that the installation time is shortened.With the same dimensional characteristics (pipe diameter, number and spacing, panel width), ECOPAN panels have higher heat output than other products on the market.This allows fewer quantities to be used to meet the same required output, saving on materials and installation costs.





	ECOPAN Hot water infrared radiant panels are made of cold-formed, profiled steel plates with 1/2 "or 3/4" diameter welded or unwelded steel tubes covering 2/3 of their surface on the outer shell of the plates.





	<img src="http://www.leadwaypower.com/Uploads/image/20230516/20230516172215_93122.png" alt="" />

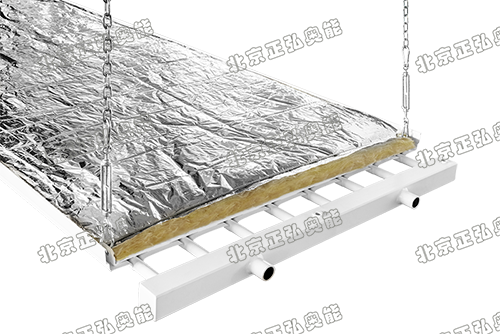

	The thermal insulation material covering the upper surface of the ECOPAN Hot water infrared radiation board is mineral cotton pad, 40mm thick, and the top is covered with aluminum foil.The ECOPAN hot water infrared radiation panel uses a rectangular section of the suspension bracket, its height is particularly reduced.





	This solution allows the insulation pad to be placed quickly and evenly, allowing the glass wool to adhere perfectly to the sheet metal.This adhesion is even improved by using a fastening rod at the top.In order to contain the sides and hide the heat pad, the side edges of the ECOPAN Hot Water infrared radiant panel face plate are obtained from the same radiant panel.They also enable faster and more precise laying of insulation.
